’Tis the holiday season.

Oh boy oh boy.

Time to get together with family & friends, enjoy some nice meals and exchange some gifts.

Happy times!

If you're still looking for a cool gift for your (nerdy) friend, I just might have the solution for you!

A fancy e-paper quote display to display all the random stuff you can think of!

Quotes? - check!
Jokes? - double-check!
That picture of your grandma you love so much? - triple-check!

Let's dive in 🤿.

What you’ll need

  • 7.5 inch/19cm e-paper display. (I got this one). There are also bigger, higher resolution and multi-colored displays but those tend to get really 💰💰💰, fast.
  • Raspberry pi zero 2 W (I got this one). You can also get the one with pre-soldered headers if you don't feel like doing it yourself.
  • Picture frame (I got this one). The screen will be 17X11cm, so you'll just have to find something slightly larger.
  • Micro SD card (8GB+ is ideal)
  • Micro usb charging cable
  • 2X20 Pin header + Soldering station/skills (unless you got the pi with pre-soldered headers)

Total project cost: +-80€ or about 0,016 camels 🐫.


And we’re off..

Sooo...

The first thing you’ll need to do is setting up your raspberry pi hardware. You do this by soldering the headers onto your raspberry pi. After that you can just plugin the e-Paper Driver HAT on top of it and you should be good to go.

The final result should look something like this;

After that’s done you can follow this really handy youtube tutorial to help you setup the software;


Some additions

  • You can also add multiple wifi configs to the wpa_supplicant.conf file. This way you can move your pi around between the home/main office and it’ll automatically work there as well.
country=BE
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1
network={
  scan_ssid=1
  ssid="SSID1"
  psk="PW1"
}

update_config=1
network={
  scan_ssid=1
  ssid="SSID2"
  psk="PW2"
}
  • I also wouldn't do the static ip part if you plan on moving the raspberry pi between locations. You can find the ip address of you pi by;
sudo nmap -sn 192.168.1.0/24

Making it come alive 🧟‍♂️

Once that’s done you can start importing several python example scripts to test the display. The most basic one that you can try out is this repo provided by waveshare electronics themselves. So you can clone the repo;

git clone https://github.com/waveshare/e-Paper
cd e-Paper/RaspberryPi_JetsonNano/python

And then some basic install commands for the libraries you'll need;

sudo apt-get update
sudo apt-get install python3-pip
sudo apt-get install python3-pil
sudo apt-get install python3-numpy
sudo pip3 install Jetson.GPIO

After this you’ll be able to run some basic example in the the examples directory

python examples/epd_7in5_V2_test.py

And if all went well you should see the standard waveshare demo springing to life on your screen. This looks something like this (2:28);


Congratulations! 🥳

Now you can start making changes to whatever you want to have displayed on the screen. I decided I wanted to have some jokes displayed from JokeApi. I basically copied the example script and started from there.

I used the FTP simple VS Code extension to easily change the files on my pi. Here's the full code;

#!/usr/bin/python
# -*- coding:utf-8 -*-
import sys
import os
picdir = os.path.join(os.path.dirname(os.path.dirname(os.path.realpath(__file__))), 'pic')
mediadir = os.path.join(os.path.dirname(os.path.dirname(os.path.realpath(__file__))), 'media')
libdir = os.path.join(os.path.dirname(os.path.dirname(os.path.realpath(__file__))), 'lib')
if os.path.exists(libdir):
    sys.path.append(libdir)

import logging
from waveshare_epd import epd7in5_V2 as epd_driver
import time
from PIL import Image,ImageDraw,ImageFont
import traceback
import textwrap
import pdb
import requests
import random
from functools import reduce
import re
import datetime

# Log to output file to see what's going on
logging.basicConfig(level=logging.INFO, filename='/home/pi/e-Paper/src/examples/quotes.log')

# Splits a long text to smaller lines which can fit in a line with max_width.
# Uses a Font object for more accurate calculations
def text_wrap(text, font = None, max_width = None):
  lines = []
  if font.getsize(text)[0] < max_width:
    lines.append(text)
  else:
    words = text.split(' ')
    i = 0
    while i < len(words):
      line = ''
      while i < len(words) and font.getsize(line + words[i])[0] <= max_width:
        line = line + words[i] + " "
        i += 1
      if not line:
        line = words[i]
        i += 1
      lines.append(line)
  return lines

def slice_index(x):
    i = 0
    for c in x:
        if c.isalpha():
            i = i + 1
            return i
        i = i + 1

def upperfirst(x):
    i = slice_index(x)
    return x[:i].upper() + x[i:]

# Calculates font-size, line-wrapping, vertical centering, # of lines, strips not-needed parts
def make_it_pretty(quotes, spacing, screen_height, screen_width, padding):
  logging.info("Formatting...")
  font_sizes = [64,56,48,40,32,24]
  attempt = 0
  while True:
    attempt += 1
    text = random.choice(quotes)
    logging.info(f"Quote try {attempt}")
    for size in font_sizes:
      font = ImageFont.truetype(os.path.join(mediadir, 'vollkorn.ttf'), size)
      line_height = font.getsize('hg')[1] + spacing
      max_lines = (screen_height // line_height)
      splitted_quote = text.split("\n")
      result = [text_wrap(part, font = font, max_width = screen_width - (padding * 2)) for part in splitted_quote]
      blocks = reduce(lambda x, y: x+y, result)
      trimmed_blocks = [x.strip() for x in blocks]
      r = re.compile("[\w\"]+")
      filtered_list = list(filter(r.match, trimmed_blocks))
      line_length = len(filtered_list)
      quote_height = line_height * line_length
      offset_y = (screen_height / 2) - (quote_height / 2)
      if (line_length <= max_lines) and (quote_height + offset_y < screen_height):
        quote = upperfirst("\n".join(filtered_list))
        logging.info(f"{quote},\n Font size: {size}, Line count: {line_length}, Quote height: {quote_height}, Offset: {offset_y}, Screen height: {screen_height}")
        return {
          "quote": quote,
          "offset": offset_y,
          "font": font
        }

# Resize PIL image keeping ratio and using white background.
def resize(image, width, height):
    ratio_w = width / image.width
    ratio_h = height / image.height
    if ratio_w < ratio_h:
        # It must be fixed by width
        resize_width = width
        resize_height = round(ratio_w * image.height)
    else:
        # Fixed by height
        resize_width = round(ratio_h * image.width)
        resize_height = height
    image_resize = image.resize((resize_width, resize_height), Image.ANTIALIAS)
    background = Image.new('RGBA', (width, height), (255, 255, 255, 255))
    offset = (round((width - resize_width) / 2), round((height - resize_height) / 2))
    background.paste(image_resize, offset)
    return background.convert('RGB')

def get_jokes():
 logging.info("Fetching joke..")
 url = "https://v2.jokeapi.dev/joke/Miscellaneous,Dark"
 json = requests.get(url).json()
 return ["\n".join([json["setup"],json["delivery"]])] if json["type"] == "twopart" else [json["joke"]]

try:
    now = datetime.datetime.now()
    logging.info(f"\n{now.strftime('%Y-%m-%d %H:%M:%S')}")
    logging.info(f"Waking up...")
    epd = epd_driver.EPD()
    epd.init()

    result = get_jokes()

    screen_width = epd.width
    screen_height = epd.height
    line_spacing = 1
    padding = 30

    view = Image.new('1', (epd.width, epd.height), 255)  # 255: clear the frame
    draw = ImageDraw.Draw(view)
    formatted_result = make_it_pretty(result, line_spacing, screen_height, screen_width, padding)

    quote = formatted_result["quote"]
    offset_y = formatted_result["offset"]
    font = formatted_result["font"]

    logging.info("Updating...")
    draw.text((padding, offset_y), quote, fill = 0, align = "left", spacing = line_spacing, font = font)
    epd.display(epd.getbuffer(view))

    logging.info("Standby...")
    epd.sleep()

except IOError as e:
    logging.info(e)
    time.sleep(5)


except KeyboardInterrupt:
    logging.info("ctrl + c:")
    epd.epdconfig.module_exit()
    exit()

Now to finish it up, You can schedule it with a cronjob to update at whatever interval you want. This will update the screen once every hour.

0 * * * * /bin/bash -l -c 'python /home/pi/e-Paper/src/examples/quotes.py'

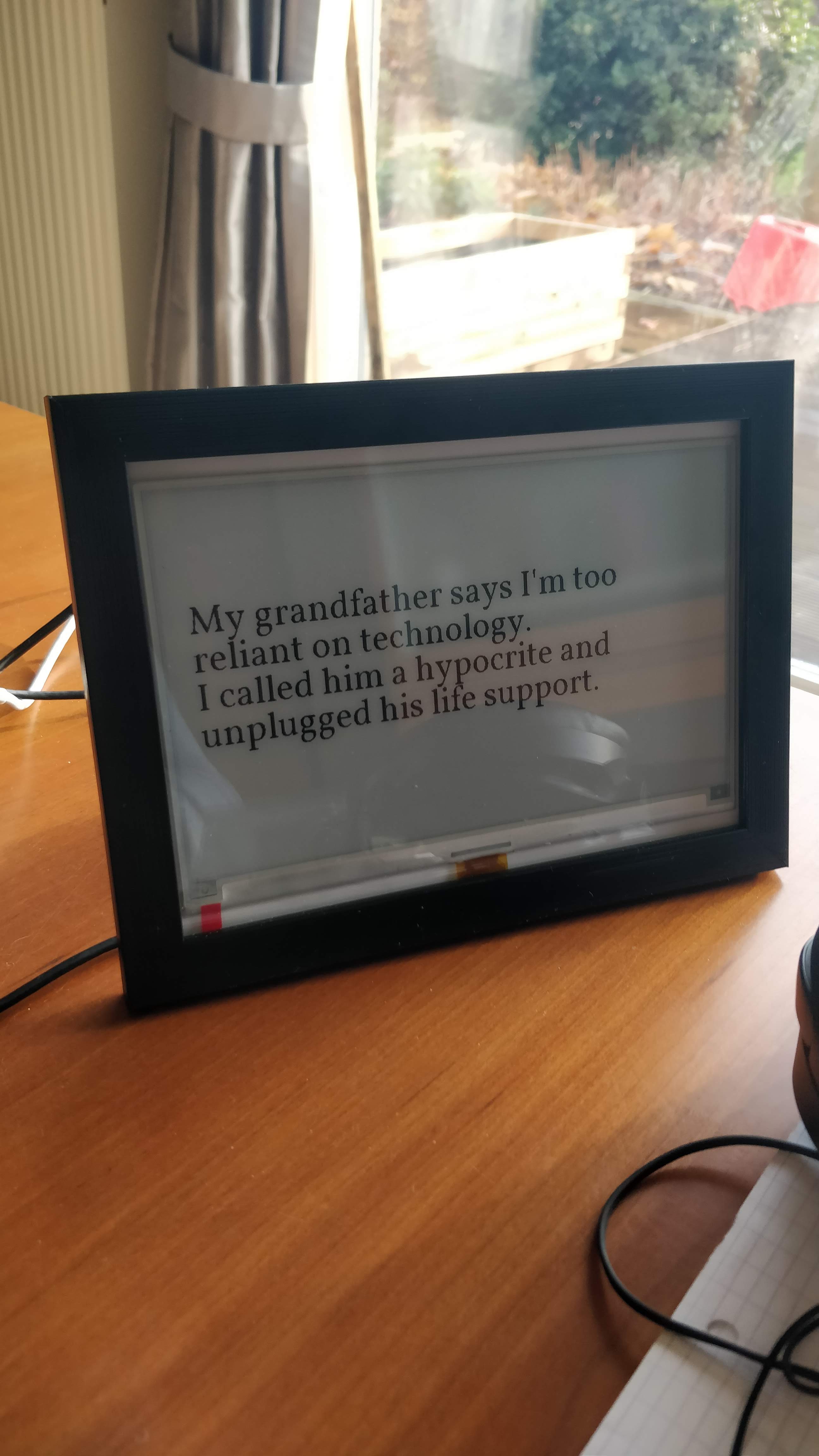

Now all that's left is to put it int a nice picture frame and hot-glue your raspberry pi to the back. Aand..

Tadaaa! 🧙🐰🎩 You're done!!


Conclusion

This makes for some really nice decoration for your desk and will significantly increase the # of laughs you'll have per day, so it's definitely a worthwhile investment. Also makes for a fun gift (I think :p)

Off-course it can be extended to display whatever you want;

  • Movies
  • Jokes
  • Quotes
  • Images
  • Cartoons

If you’ve made one as well, let me know in the comments below!
